K SERIES Gas Compressors

K SERIES
Gas Compressors

Since 1923 Pneumofore has designed and produced Rotary Vane compressors and vacuum pumps featuring original solutions. The constant efforts in Research and Development are at the base of the new K Series gas compressors.

The K Series gas compressors are the solution for gas treatment and processing applications that need high energy savings, low operational cost and constant efficiency over decades. With 2.5 to 10 bar(g) pressure range and up to 2690 m3/h, the K Series covers the gas compression requirements in many industries, from the oil&gas and energy sectors to chemicals, from the metal industry to food processing and more. The high-quality, sturdy design of these gas compressors meets the most stringent safety criteria, including the Atex directive for Zone 1. The K Series gas compressors handle a wide range of gases, including: methane (CH4), ethane (C2H6), carbon dioxide (CO2), nitrogen (N2), biogas and natural gas.
Pneumofore Rotary Vane technology, which is at the core of the K Series, ensures trouble-free operation, stable performance over the years and the lowest Life Cycle Cost available in the market.

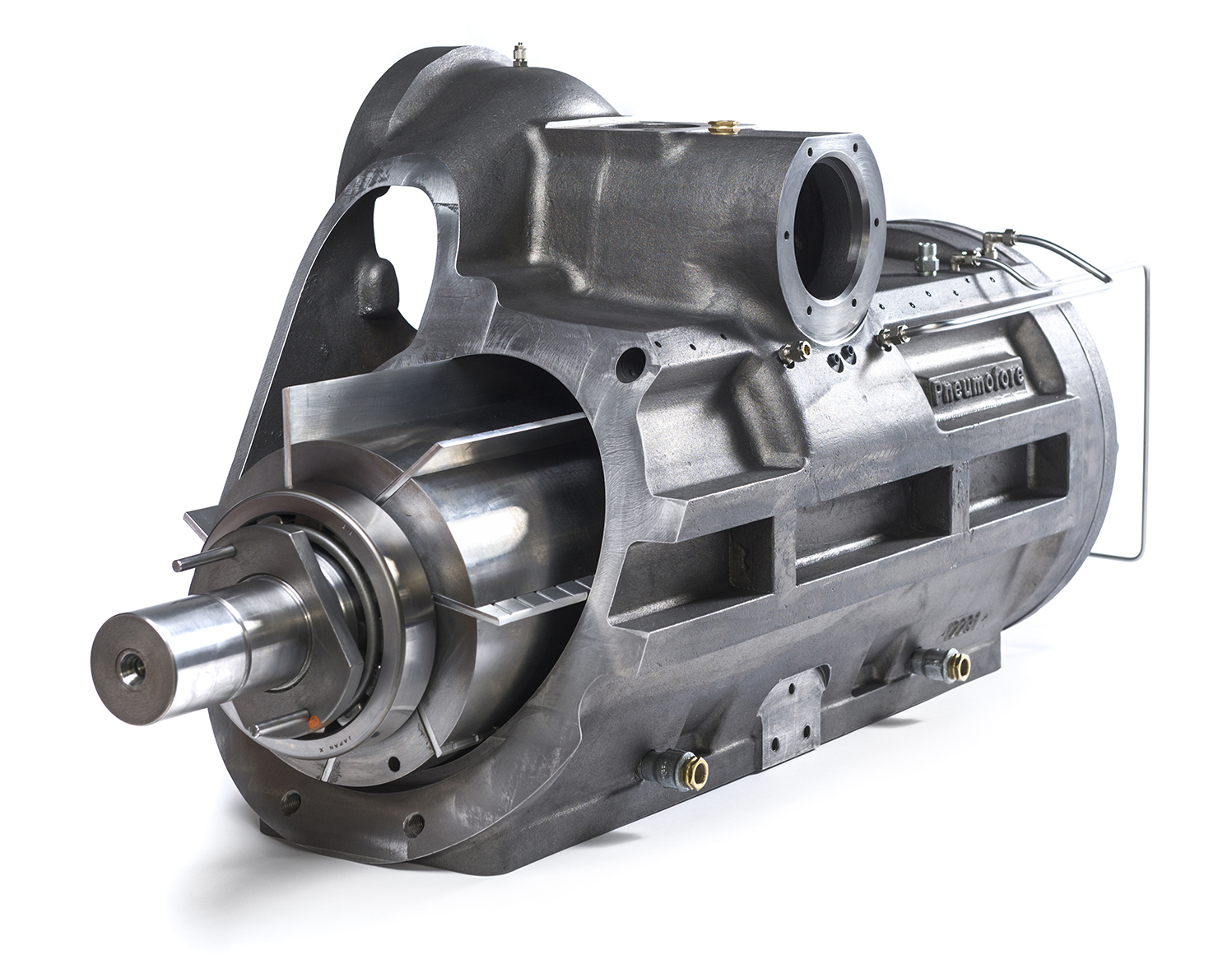

Section of Rotary Vane Air-End

Compression volumes from 67 to 2.690 m3/h (Single stage) in the range of 2,5 to 10 bar(g).

Constant efficiency within the speed range.

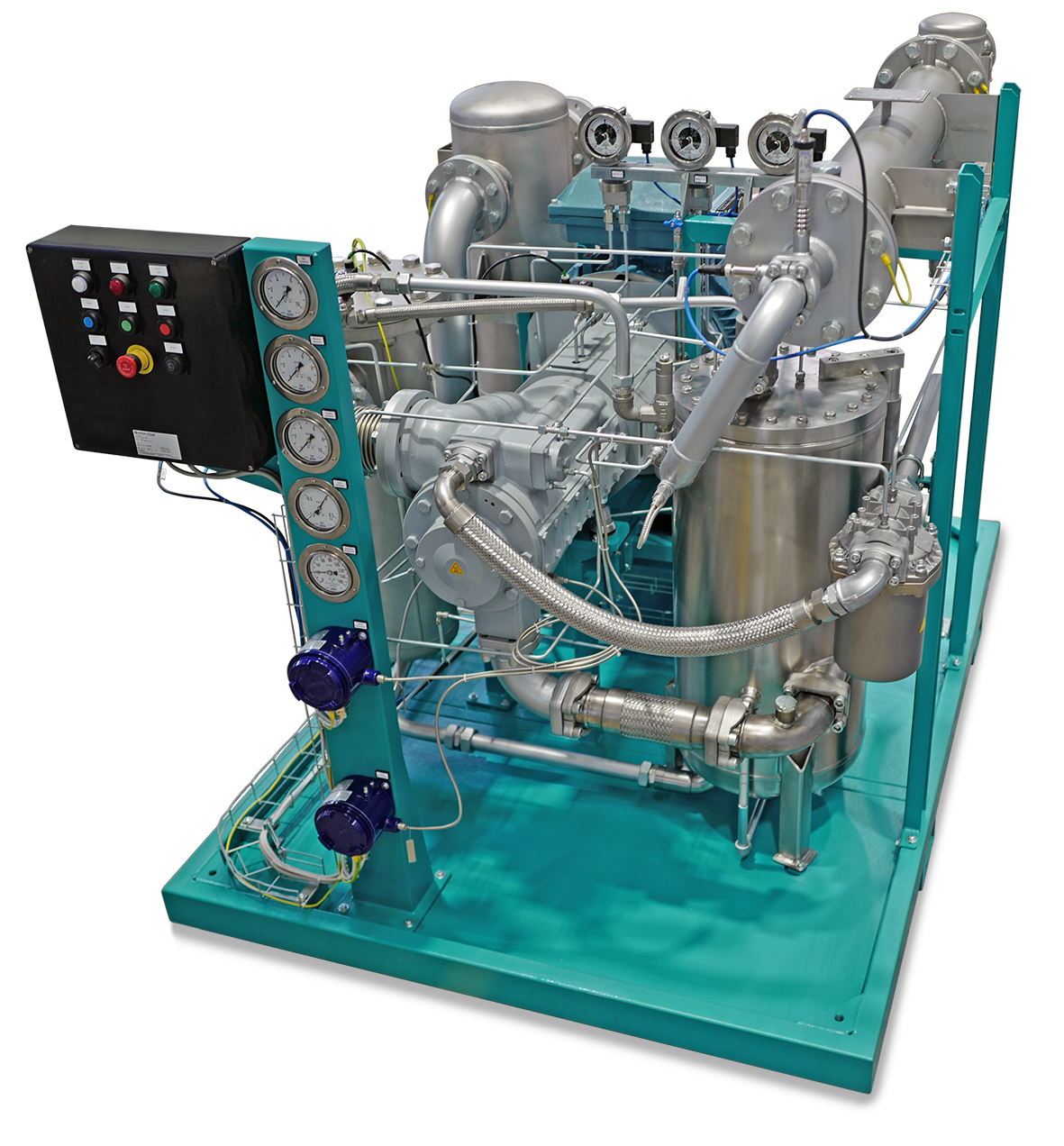

“Plug and play” compressors, easy to install and integrate. All-included accessories available on skid.

Low rotation speed for low level noise and maximum longevity.

Heavy-duty design for continuous operation 24/7.

Certified for extreme and explosive environments.

Non-consumable vanes made of aluminum alloy provide active sealing, avoiding efficiency loss and minimizing cost of operation and maintenance.

Simple design for ease of maintenance.

Two bearings only and few moving parts for maximum reliability.

All-included accessories available on skid.

TECHNICAL DATA
Select a model

Select a model and swipe to the left for more data

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K400.4
2,5-4 2.330 2.560 148 162 3.500 79 80 5.800
K400.8
4-8 2.300 2.300 224 224 2.100 79 80 5.800
K400.10
8-10 2.285 2.285 254 254 1.960 79 80 5.800

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K400.4
36-58 1.354 1.505 200 220 138 79 80 12.787
K400.8
58-116 1.354 1.354 304 304 83 79 80 12.787
K400.10
116-145 1.345 1.345 345 345 78 79 80 12.787
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K260.4
2,5-4 1.720 2.037 109 129 2.900 79 80 2.800
K260.8
4-8 1.525 1.760 148 171 1.800 79 80 2.800
K260.10
8-10 1.518 1.740 169 193 1.960 79 80 2.800

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K260.4
36-58 1.012 1.199 148 175 115 79 80 6.173
K260.8
58-116 897 1.036 201 233 71 79 80 6.173
K260.10
116-145 893 1.024 229 263 78 79 80 6.173
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K180.4
2,5-4 1.420 1.634 90 103 2.900 78 79 2.300
K180.8
4-8 1.110 1277 108 124 1.800 78 79 2.300
K180.10
8-10 1.105 1.270 123 141 1.960 78 79 2.300

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K180.4
36-58 835 962 122 140 115 78 79 5.071
K180.8
58-116 653 752 147 169 71 78 79 5.071
K180.10
116-145 650 747 167 192 78 78 79 5.071
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K150.4
2,5-4 1.030 1.230 65 78 2.300 77 78 2.100
K150.8
4-8 875 1.006 85 98 1.800 77 78 2.100
K150.10
8-10 871 1.001 97 111 1.860 77 78 2.100

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K150.4
36-58 606 724 89 106 91 77 78 4.630
K150.8
58-116 515 592 116 133 71 77 78 4.630
K150.10
116-145 512 589 132 151 74 77 78 4.630
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K120.4
2,5-4 860 990 54 63 2.250 74 75 1.600
K120.8
4-8 755 868 73 64 1.600 74 75 1.600
K120.10
8-10 752 861 84 96 1.660 74 75 1.600

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K120.4
36-58 506 583 74 85 89 74 75 3.527
K120.8
58-116 444 511 100 115 63 74 75 3.527
K120.10
116-145 442 507 114 130 66 74 75 3.527
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K90.4
2,5-4 560 663 35 42 2.250 73 74 1.250
K90.8
4-8 550 633 53 62 1.600 73 74 1.250
K90.10
8-10 548 628 61 70 1.660 73 74 1.250

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K90.4
36-58 329 390 48 57 89 73 74 2.756
K90.8
58-116 324 373 73 84 63 73 74 2.756
K90.10
116-145 322 370 83 95 66 73 74 2.756
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K60.4
2,5-4 362 429 23 27 2.000 72 73 1.015
K60.8
4-8 355 408 35 40 1.600 72 73 1.015
K60.10
8-10 353 405 39 45 1.500 72 73 1.015

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K60.4
36-58 213 252 31 37 79 72 73 2.238
K60.8
58-116 209 240 47 54 63 72 73 2.238
K60.10
116-145 208 238 53 61 59 72 73 2.238
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K35.4
2,5-4 210 249 13 16 1.490 73 74 440
K35.8
4-8 200 230 19 22 750 73 74 440
K35.10
8-10 198 227 22 25 1.060 73 74 440

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K35.4
36-58 124 147 18 21 59 73 74 970
K35.8
58-116 120 135 26 30 30 73 74 970
K35.10
116-145 118 134 30 34 42 73 74 970
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K30.4
2,5-4 175 207 11 13 1.490 72 73 420
K30.8
4-8 168 189 16 18 750 72 73 420
K30.10
8-10 167 187 19 21 1.060 72 73 420

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K30.4
36-58 103 122 15 18 59 72 73 926
K30.8
58-116 99 112 22 25 30 72 73 926
K30.10
116-145 98 110 25 28 42 72 73 926
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K20.4
2,5-4 106 126 7 8 1.490 72 73 340
K20.8
4-8 102 115 10 11 750 72 73 340
K20.10
8-10 101 113 11 13 1.060 72 73 340

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K20.4
36-58 62 74 9 11 59 72 73 750
K20.8
58-116 60 68 14 15 30 72 73 750
K20.10
116-145 59 67 15 17 42 72 73 750
Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
kg
bar(g)
m3/h
kW
mm
db(A)
K10.4
2,5-4 70 83 4 5 1.490 72 73 300
K10.8
4-8 68 75 6 7 750 72 73 300
K10.10
8-10 67 74 7 8 1.060 72 73 300

Imperial Units

Model
Pressure Range
Capacity
Shaft Power *
Dimensions
Noise
Weight
50 Hz
60 Hz
50 Hz
60 Hz
L x W x H
50 Hz
60 Hz
lbs
PSI(g)
cfm
HP
inch
db(A)
K10.4
36-58 41 49 6 7 59 72 73 661
K10.8
58-116 40 44 8 10 30 72 73 661
K10.10
116-145 40 44 10 11 42 72 73 661

* = Shaft power refers to pressures: 3, 7 and 9 bar(g).
Hz = frequency
cfm and m3/h compressed air flow rate at the rated pressure.
Performance data refer to air. The capacity and power depend on the gas composition.
At standard reference conform to ISO 8778: 1 bar(a), 20°C, 65% relative humidity

OPTIONAL FEATURES

Pneumofore K Series Gas Compressors

K – THE CORE SERIES: Models from K10 to K400 with a capacity range of 64 to 2.690 m3/h from 2,5 to 10 bar(g). Water or air cooled according to the customer’s needs. All components are skid-mounted, ready-to-go. Atex certified II 2 / 2 G (Internal / External).

Variable Speed (VS) drive from 35 to 60 Hz to manage any variation of flow request.

Skid-mounted or optional sound-proof enclosure.

Off-skid electrical panel and control panel.

On-board monitoring.

Optional devices such as inlet and outlet filters, electrical motor and more.

Each K Series compressor is designed according to the specific gas composition and application.
